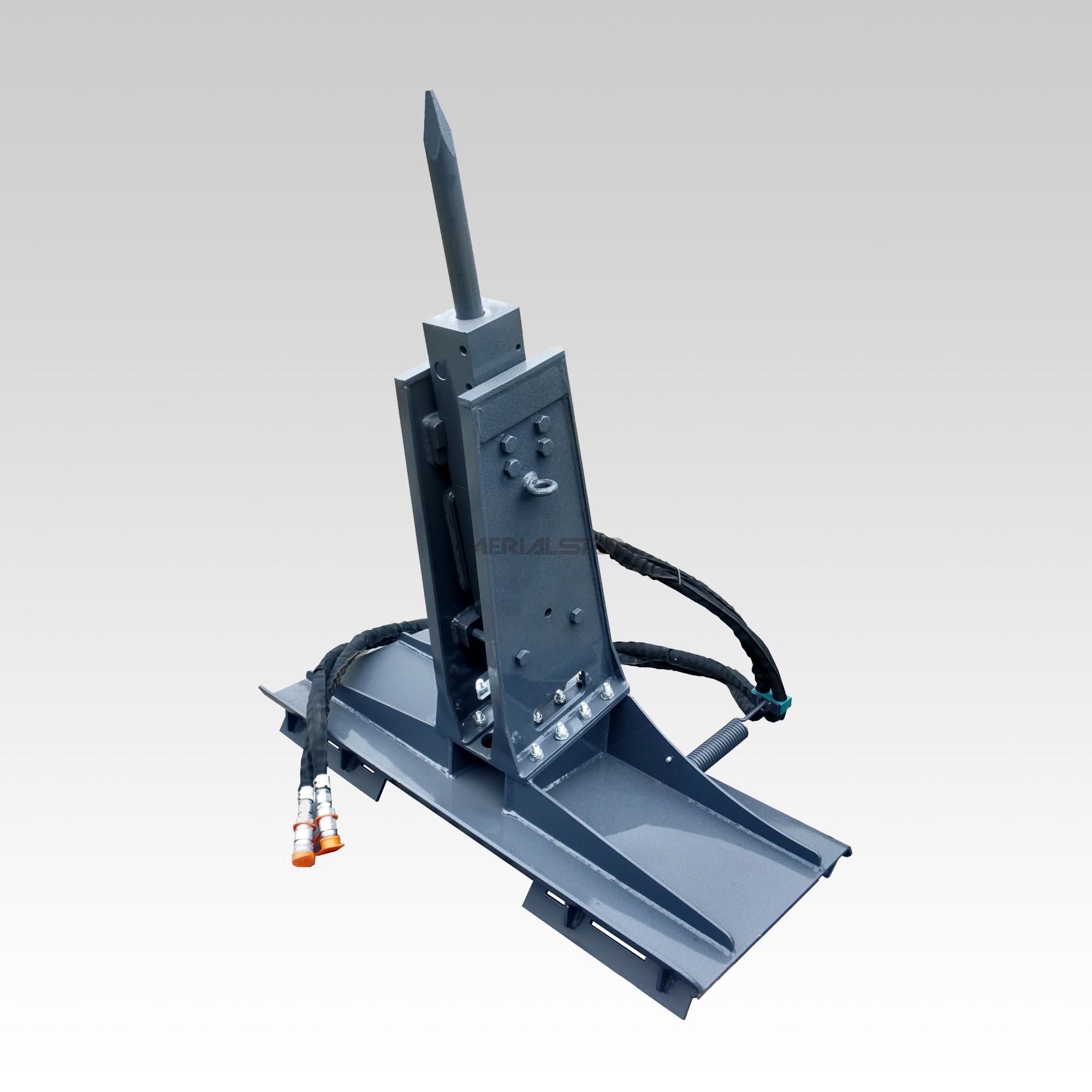

Breaking Hammer

Product Item：0203

1. This product is an airborne hydraulic hammer, which can be adapted to
the excavator and the sliding loader.
2. Use the power of the host system to achieve a wide range of functions
of the hydraulic hammer. Scope of application: mining, gold management,
municipal engineering, road engineering, etc.

Product Detail

Model	020375	020370	020353	020345
length（mm）	1200	1200	1200	1200
width (mm)	812	809	747	747
height(mm)	2036	1692	1493	1431
Brock diameter（mm）	φ75	φ70	φ53	φ45
Work flow（L/min）	35-65	30-45	25-45	25-40
working pressure （bar）	110-160	110-160	110-140	110-140
impacting frequency（bpm）	500-700	500-800	500-900	500-1000
Nitrogen chamber air pressure（Kg/cm²）	14-16	14-16	14-16	14-16
weight（Kg）	447	341	231	200
Adapted models	6-9 Tons of Digger	4-7 Tons of digging machine	2.5-4.5 tons of excavator	1.2-3-ton excavator
Note: the product default shuntian hammer core, have special requirements, please note in the order
