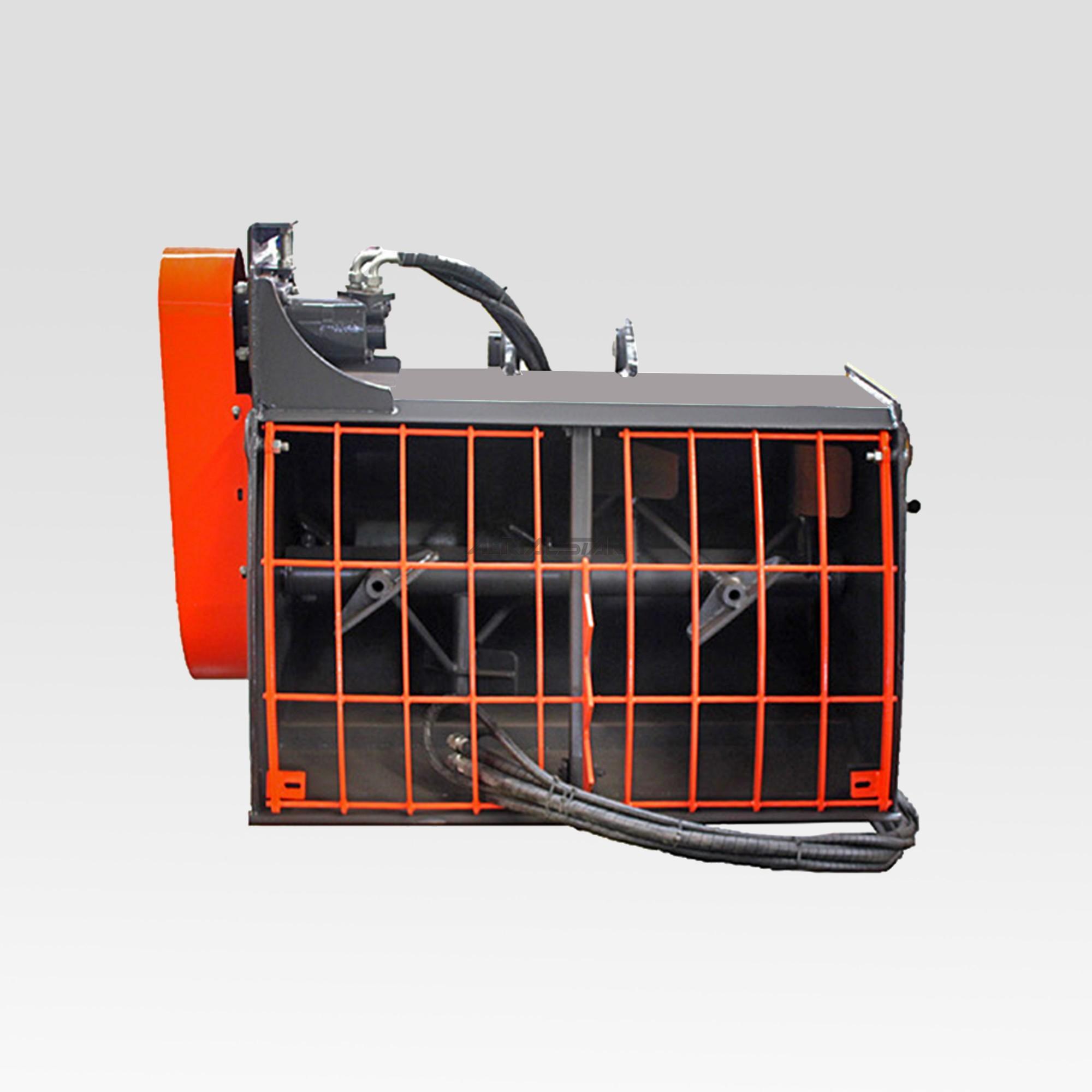

Concrete Mixer Bucket

Product Item：0310

It combines the functions of a mixer and a bucket, reducing the trouble caused by
the shoveling and transportation of yellow sand and stones, saving work time, and
improving work efficiency.

Product Detail

Technical parameters of the concrete mixing bucket
model	031004	0310L04	031006	0310A04
length(mm)	1170	1850	1170	875
width(mm)	1835	1340	2135	1500
height(mm)	1215	1235	1215	1015
A bucket of production(m3)	0.45	0.45	0.6	0.45
Work flow(l/min)	60-110	60-80	60-110	60-110
Maximum allowable pressure(MPa)	21	21	21	21
Theoretical weight (including pendant)（kg）	560	573	650	550
Discharge method	Front / side unloading	Front / side unloading	Front / side unloading	Front unloading
Use the model	Skid steer loader / mini loader
