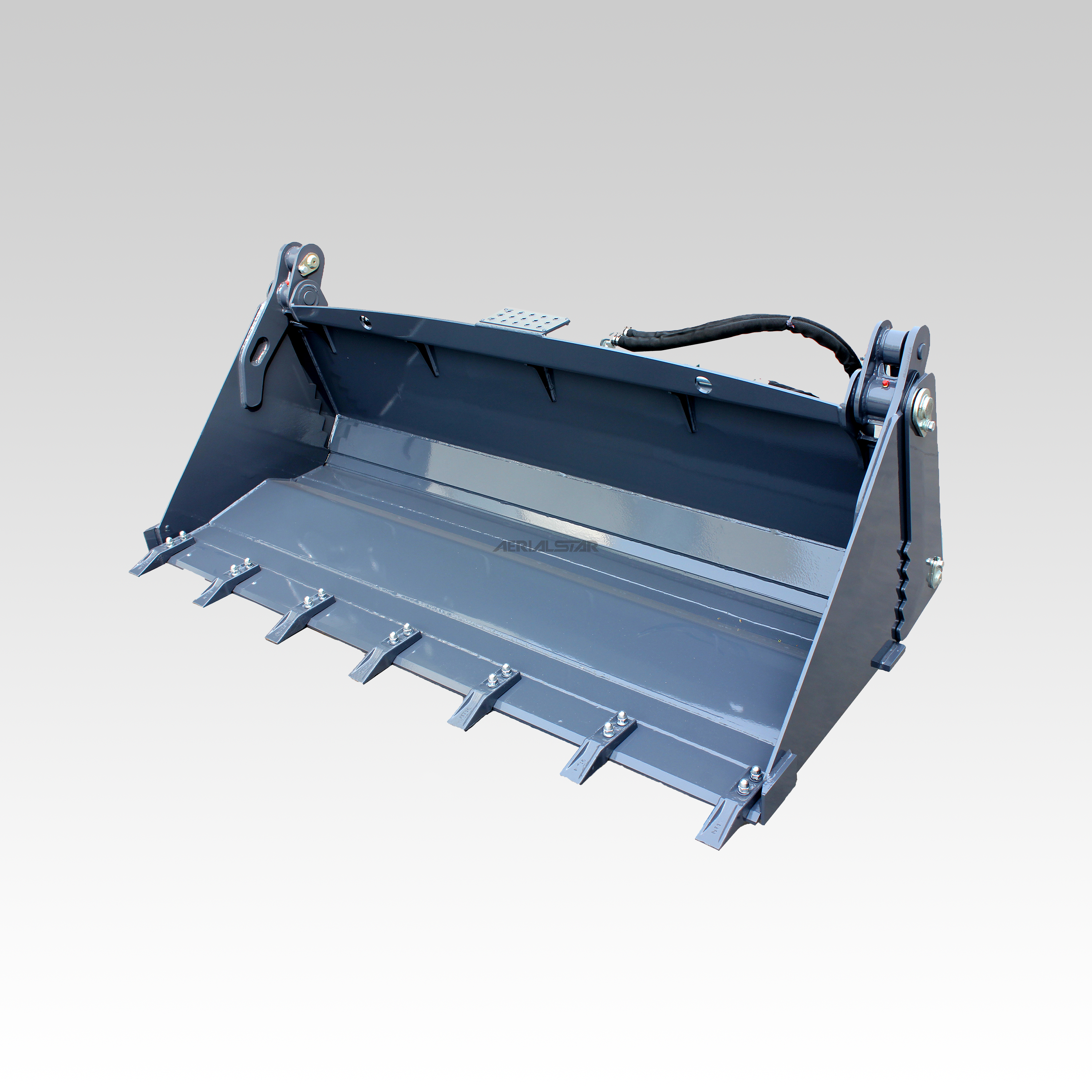

4-in-1 Bucket

Product Item：0104

This bucket is suitable for skid steer loaders and is a multifunctional work tool
that integrates loading, bulldozing, scraping, and clamping operations. It has
 the characteristics of simple structure, flexible operation, and stable performance,
and is widely used in construction engineering, municipal engineering, urban
 and rural landscaping, highway transportation, mining, ports, etc.

Product Detail

Technical Parameters
Model	010460B	010472A	010484A
Overall Length(mm)	871/925	871/925	871/925
Overall Width (mm)	1590	1890	2130
Overall Height (mm)	715	715	715
Opening distanc（mm）	800	800	800
Weight (including pendant) (Kg)	344	377	410
Flat/Stacked Bucket Capacity（m³）	0.36/0.48	0.4/0.52	0.44/0.56
Work flow（L/min）	20-30	20-30	20-30
Max. allowable pressure（MPa）	21	21	21
Application	Welding edge teeth, optional bucket teeth or secondary blade plate
