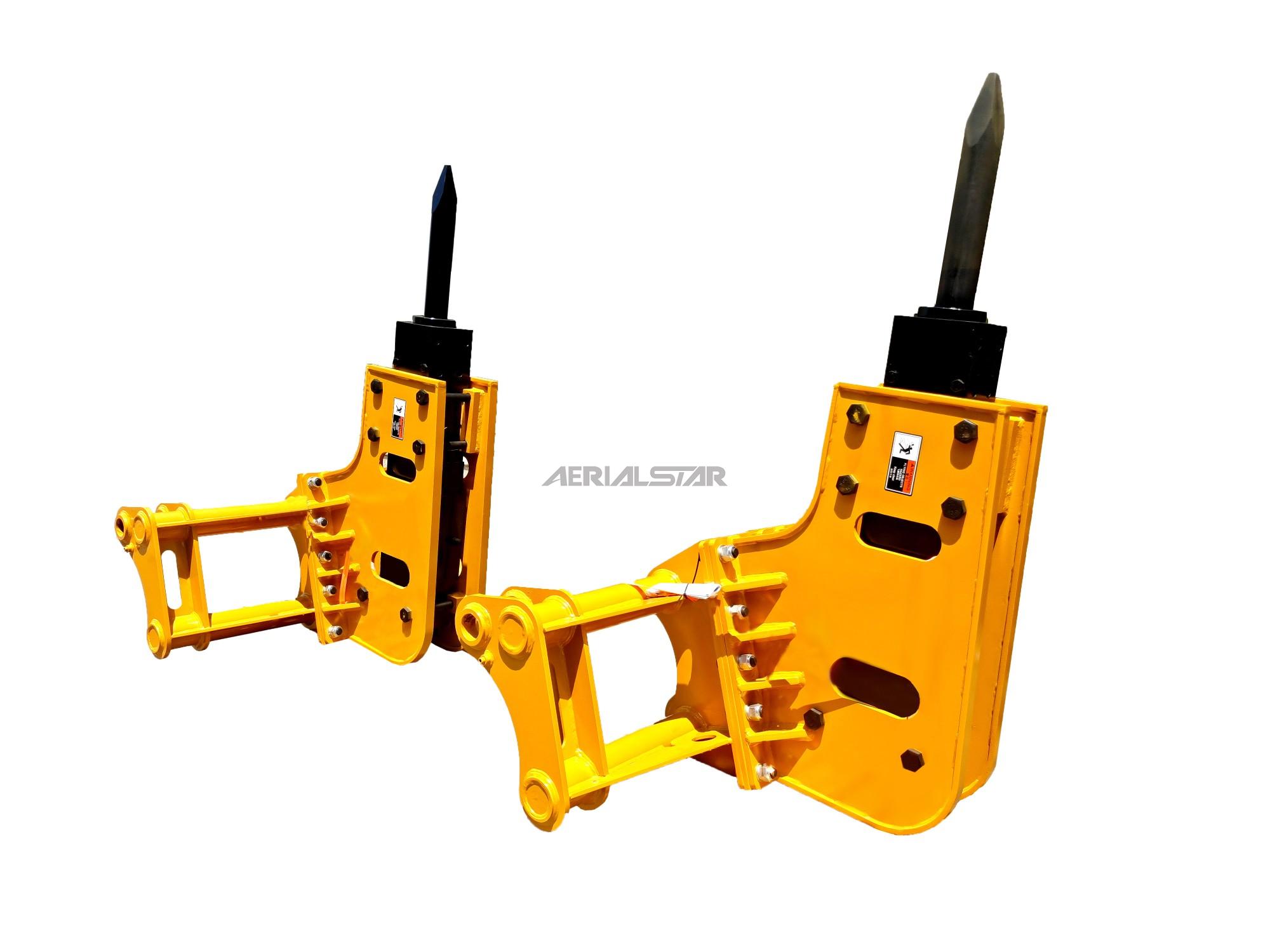

Breaking Hammer

Product Item：BM16100

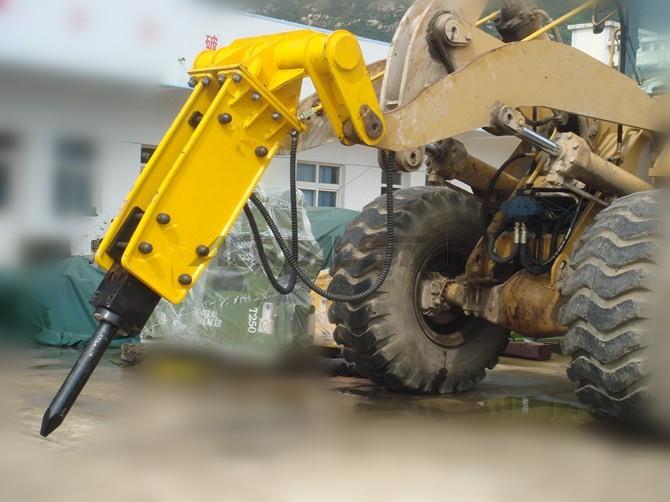

1. It can be used on excavators or loaders.
2. Utilize the power of the host system to achieve a wide range of functions for hydraulic
hammers. Application scope: Mining, metallurgy, municipal engineering, road engineering, etc.

Product Detail

Model	BM16100
Overall length (mm)	1290
Overall Width (mm)	644
Total height (mm)	2495
Brazing rod diameter (mm)	φ100
Working flow rate (L/min)	80-110
Working pressure (bar)	150-170
Impact frequency (bpm)	350-700
Nitrogen chamber air pressure (Kg/cm²)	12-14
Weight (including pendant) (Kg)	1349
Applicable models	11-16 tonne excavators/5 tonne forklifts
