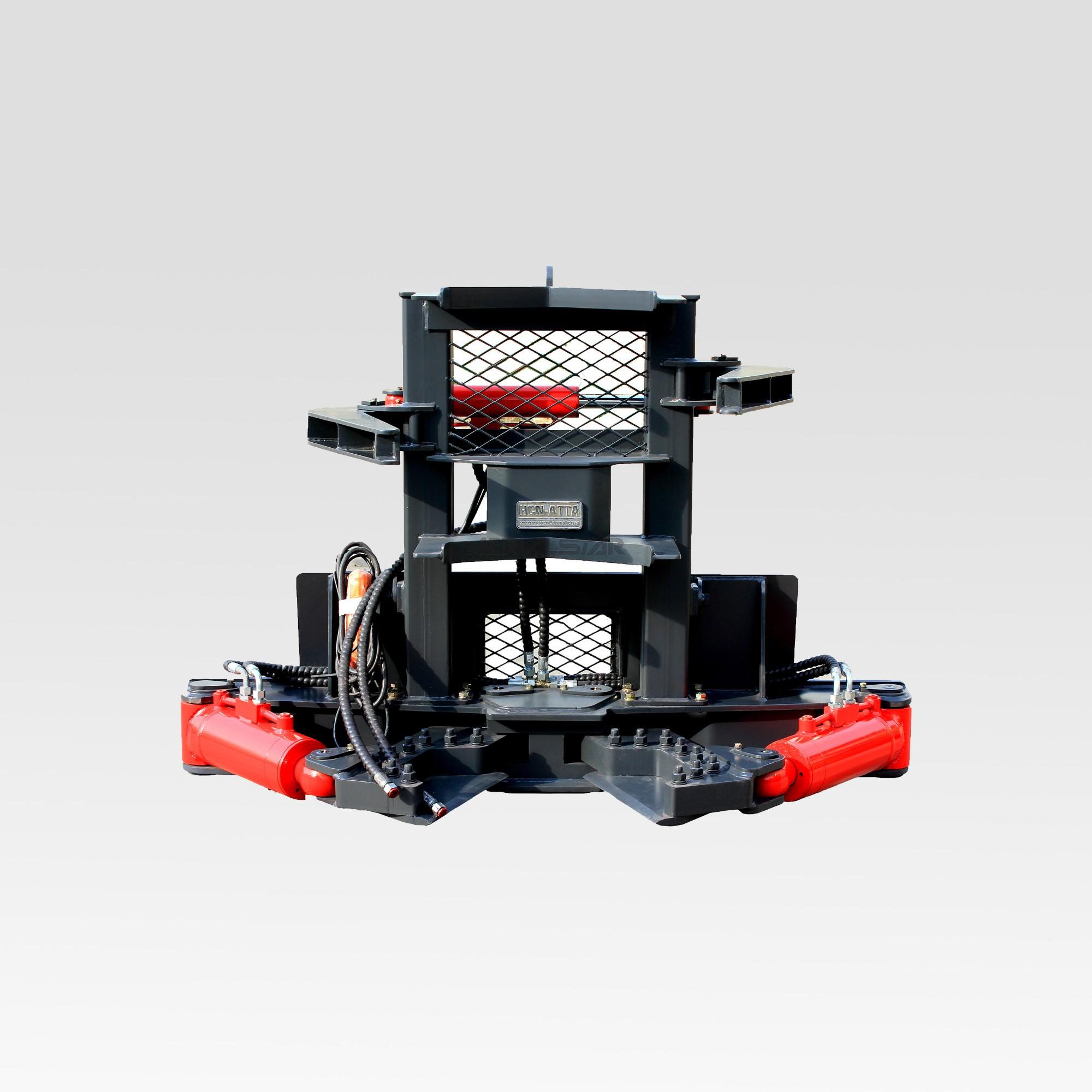

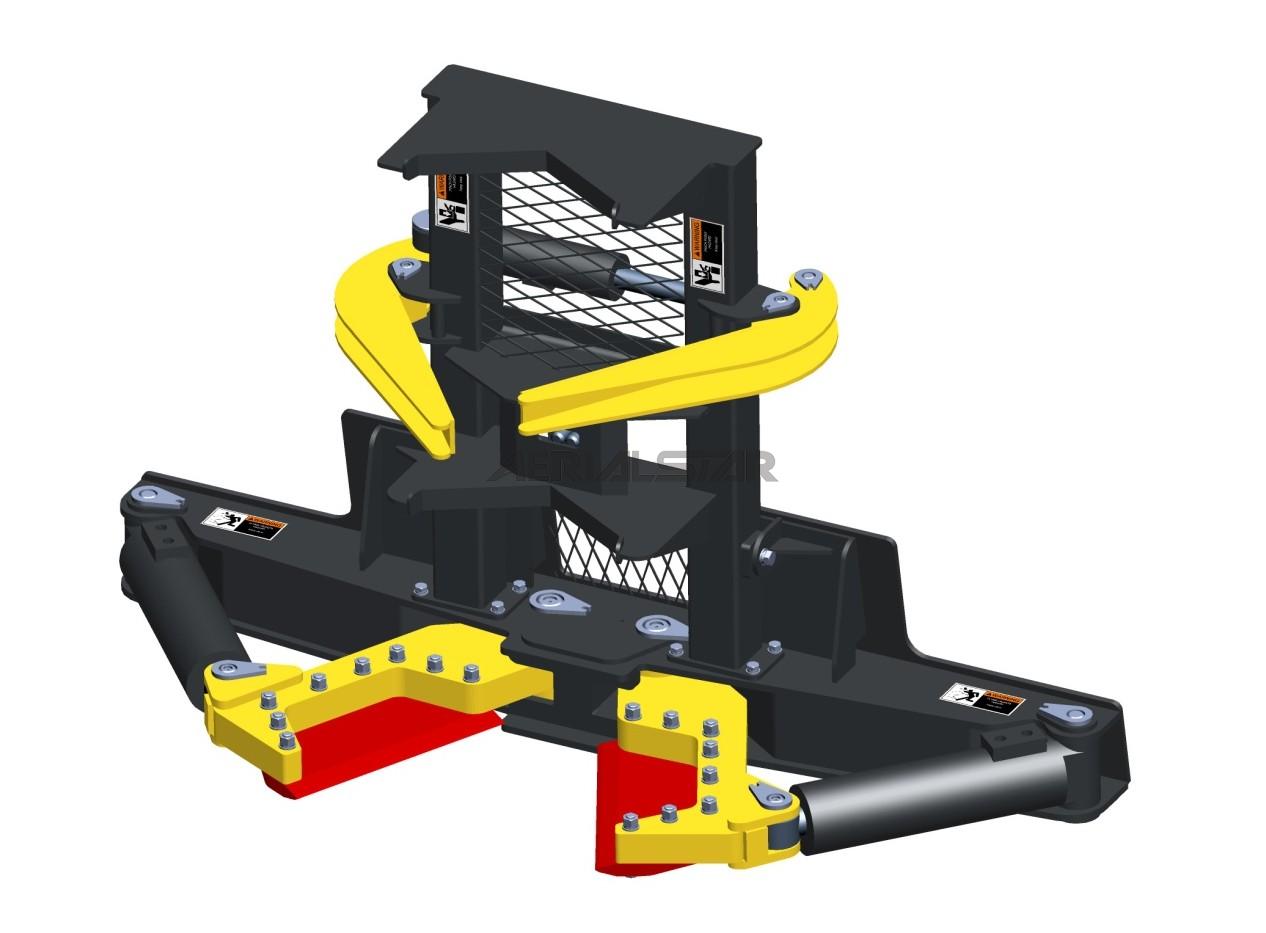

Tree Shear

Product Item:0512
This machine is suitable for Skid Steer loaders or Mini loaders and can be used for tree cutting operations.
 By extending and retracting the hydraulic cylinder, the shear head is pushed to close or open smoothly
and effectively, ensuring safety and reliability, greatly reducing the labor intensity of the operators. This
tree clipper is equipped with a clamping mechanism, which is reliable and convenient to work with.
  • Product Detail

model

051212

051216

width(mm)

1900

2300

height(mm)

1305

1525

length (mm)

860

895

Cut the tree diametermm

≤φ300

≤φ400

 [] theoretical weight kg

765

870

Allow maximum pressureMPa

21

21

Work flowL/min

50-75

50-75

Operating voltage   (V) (optional)

DC12/DC24

DC12/DC24

Adapt to the host

Skid steer loader /Mini loader
