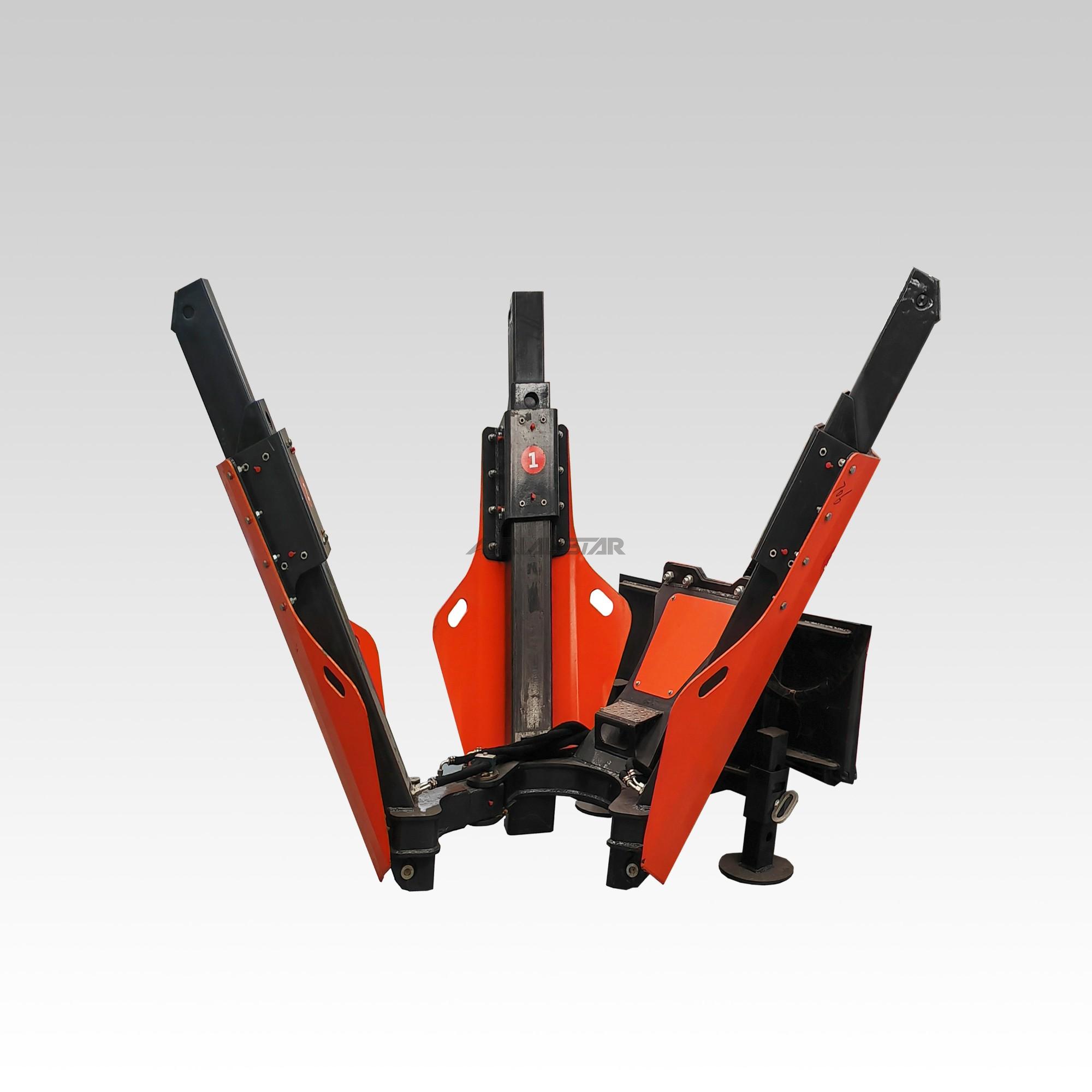

Three-petal tree transplanter

Product Item：050236

Applicable conditions:
① Class I soil and most of Class II soil.
② Pre-work water infiltration can be used for compacted hard soils.

Technical parameters
Model	050236
Overall height (mm)	1828
Overall width (mm)	1780
Overall length (mm)	1815
Theoretical weight (incl. pendant) (kg)	680
Tree diameter (mm)	≤φ100
Tree ball diameter (mm)	≤φ880
Digging depth (mm)	≤700
Allowable maximum pressure (Mpa)	21
Working voltage (V)	DC12/DC24
Total height when blade rises to the highest (mm)	1840
Total height when the blade falls to the lowest (mm)	1828
Option	Optional mechanical or hydraulic outriggers (mounted on the rear of the main machine)

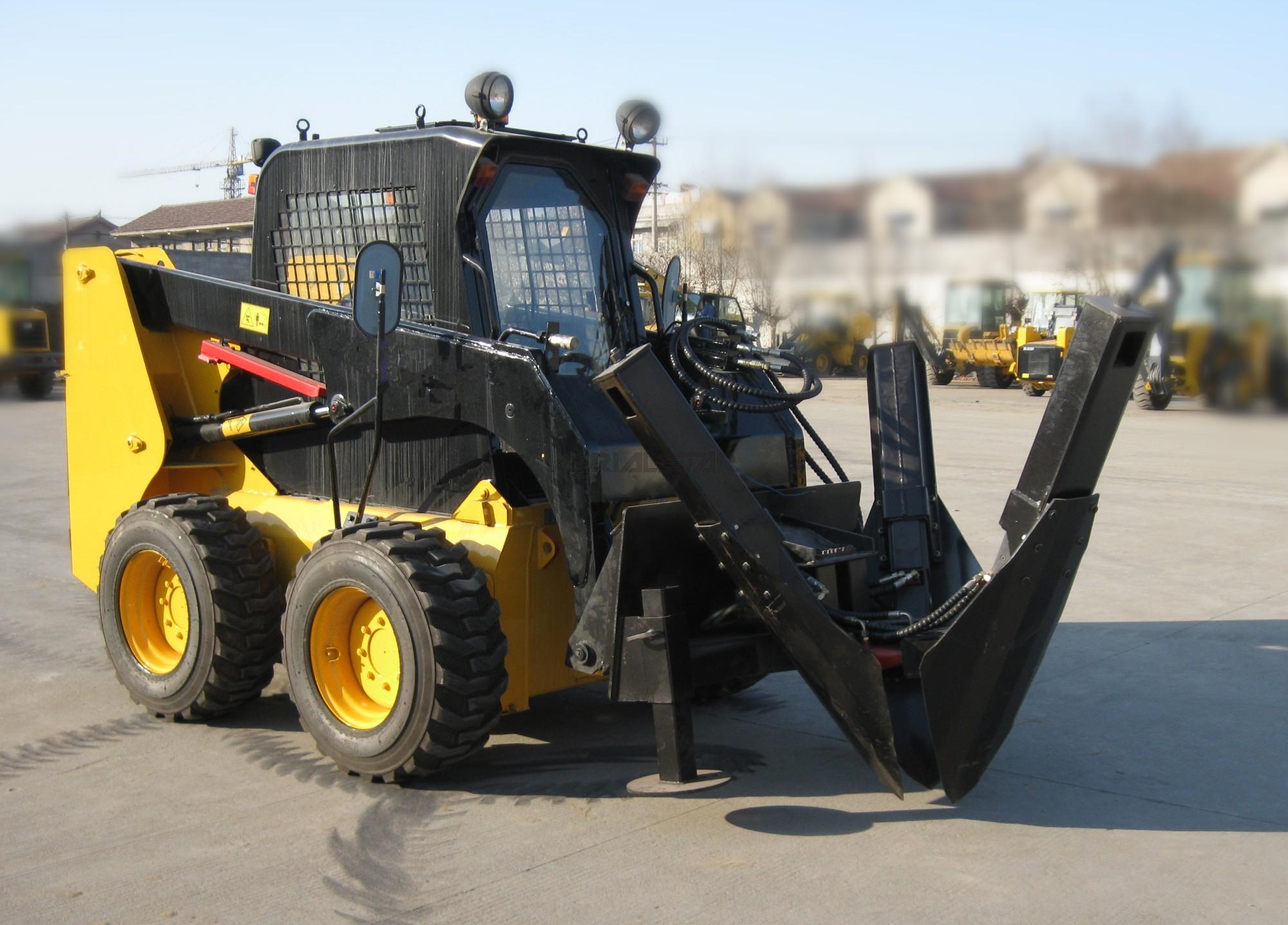

Applicable models	Skid steer loaders / compact loaders
