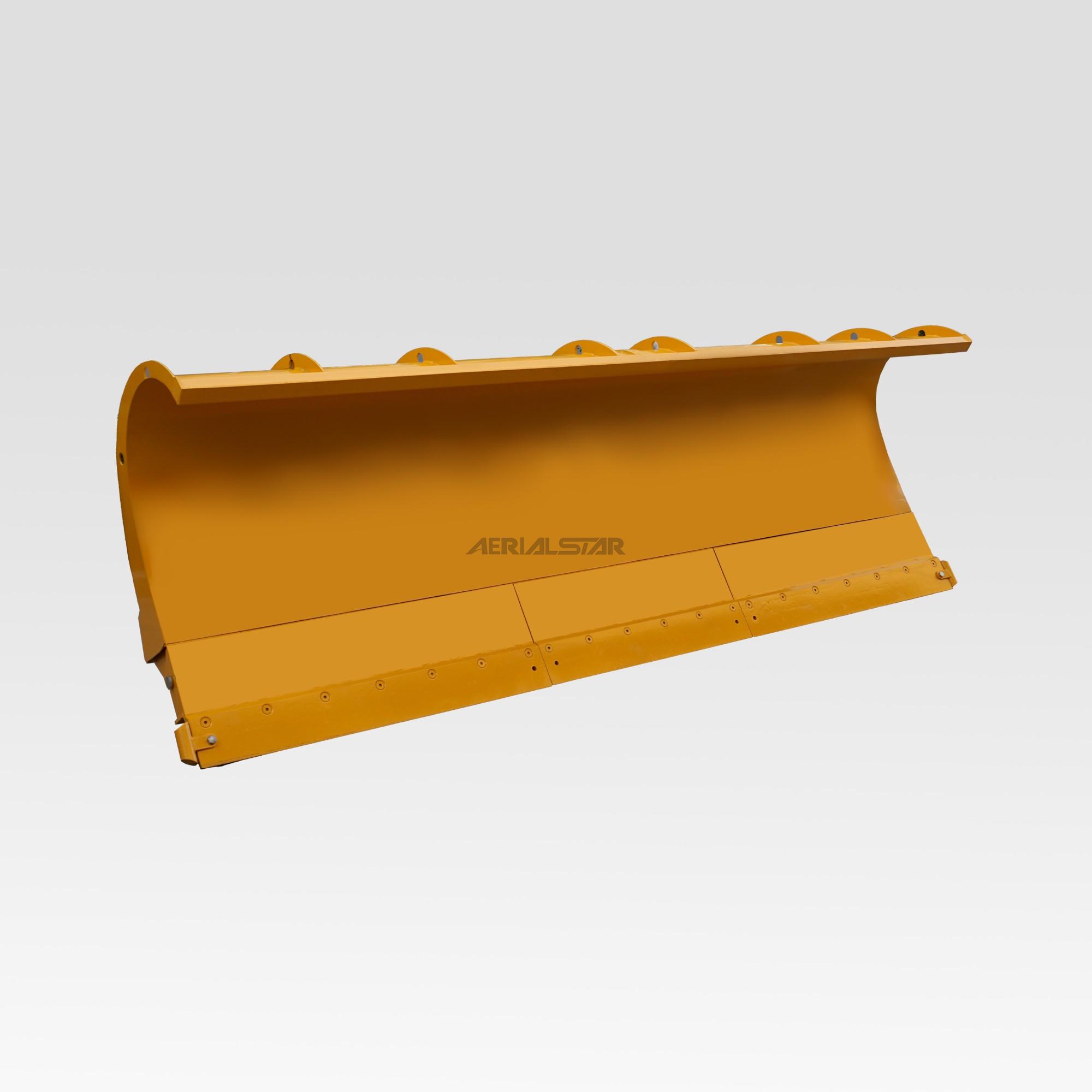

Snow Blade

Product Item：BM18

1. The snow blade can be driven by independent hydraulic power, with a working voltage of 24V.
2. The snow blade has automatic obstacle avoidance and reset functions, with high cutting force
and fast speed during snow removal, and a long snow lifting distance;

Product Detail

Technical Parameters
Model	BM18120Ⅰ	BM18140Ⅰ	BM18160Ⅰ
Total width (mm)	3000	3600	4000
Cabinet minister (mm)	2020	2020	2020
Overall height (mm)	1200	1200	1200
Horizontal working swing angle of shovel body (°)	±30	±30	±30
Flat angle 30 width (mm)	2650	3250	3650
Maximum obstacle avoidance height (mm)	150	150	150
Weight (including pendant) (kg)	1600	1750	1850
Hydraulic independent unit	Optional
Maximum allowable pressure (Mpa)	20
Hanging model	3T and 5T loaders		Loader above 5T
