Aerial Star Machinery Technology Co.,Ltd.
model | 020612Ⅰ | 020618Ⅰ | 020624Ⅰ | 020640Ⅰ |
length (mm) | 1215 | 1215 | 1215 | 1100 |
width (mm) | 1760 | 1760 | 1760 | 1760 |
height(mm) | 970 | 970 | 970 | 880 |
Milling width(mm) | 300 | 450 | 600 | 1000 |
Milling depth（mm） | 0-110 | 0-170 | 0-170 | 0-130 |
Maximum lateral shift distance（mm） | 510 | 510 | 510 | 420 |
angle of inclination（°） | ±8 | ±8 | ±8 | ±8 |
Work flow（L/min） | 80-110 | 120-150 | 120-170 | 120-200 |
Maximum allowable pressure(MPa) | 21 | 21 | 21 | 21 |
Maximum allowable pressure（V）（selectable) | DC12/24 | DC12/24 | DC12/24 | DC12/24 |
Theoretical weight (including pendant)（Kg） | 850 | 950 | 1100 | 1150 |
Choose accessories | 1、Optional blade (asphalt blade and concrete blade) 2、spray system | |||
Adapted models | Skid Steer loader (complete with large flow output） | |||

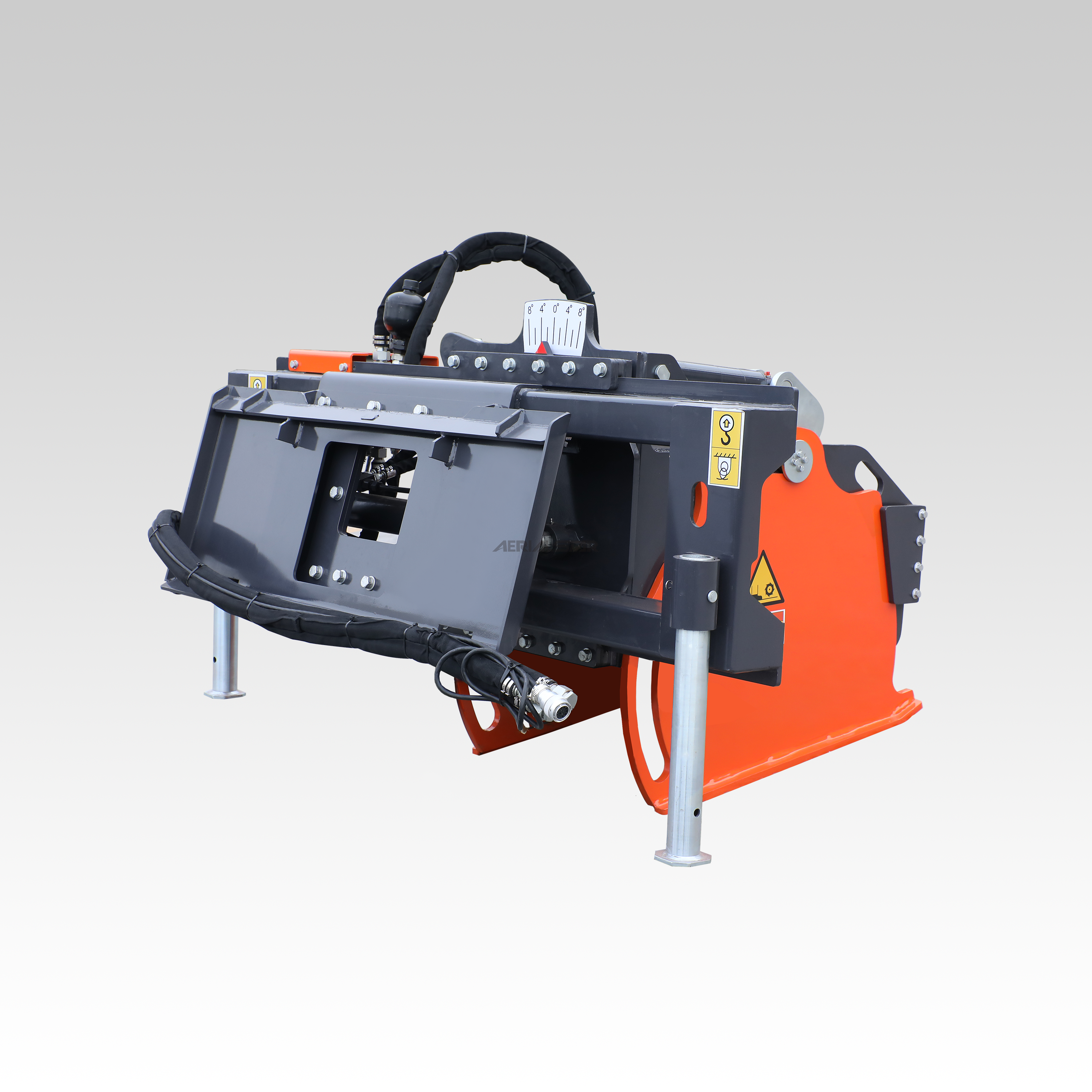

Main features of the products:
1, can be adapted to the sliding loader with a large flow of hydraulic working system, used for milling asphalt, concrete pavement.
2, equipped with self-leveling adjustment system, the milling depth in the case of tilt, the operation is more simple.
4, the overall structure is relatively simple, easy to replace the milling plane drum and knife head.
5, can make the milling planer side movement, no need to ride on the curb and ditch construction and get better milling effect.
6, the spray system can be selected to cool the milling drum, more effective operation, improve work efficiency.
7, independent adjustment of the side plate, can realize the side-by-side continuous milling operations.
