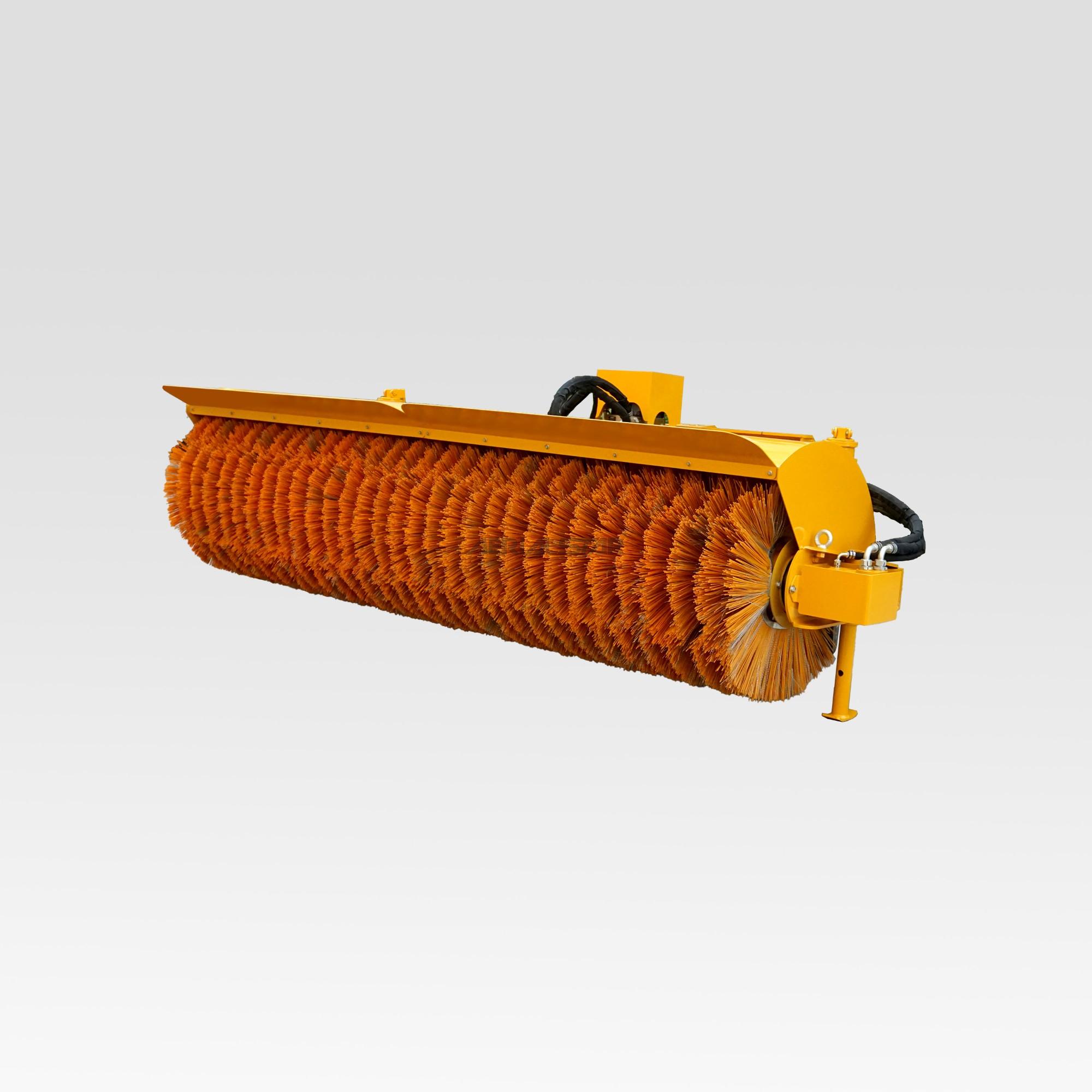

Angle Broom

Product Item：BM11A

This attachment can quickly clean snow and dirt on streets, squares, and highways
without damaging the paving surface of the road. It has the characteristics of easy
installation, flexible use, high work efficiency, reliable quality, and superior performance.

Product Detail

Technical parameters
Model	BM11A96	BM11A120	BM11A140
Cabinet minister (mm)	2060	2150	2150
Overall width (mm)	3260	3850	4450
overall height (mm)	1480	1480	1480
Transportation Height (mm)	1165	1190	1190
Total weight (including pendant) (kg)	1025	1265	1400
Cleaning Width (mm)	2440	3000	3600
Swing angle () (hydraulic steering)	±30	±30	±30
Cleaning width after offset 30 (mm)	2115	2600	3120
Brush Roll Diameter (mm)	Φ800	Φ800	Φ800
Allowable maximum pressure (Mpa)	20	20	20
Work flow rate (L / Min)	130-160	160-200	200-220
working voltage (V)	DC24	DC24	DC24
Hanging model	2 ton / 3 ton loader	2 ton / 3 ton loader	2 ton / 3 ton loader
