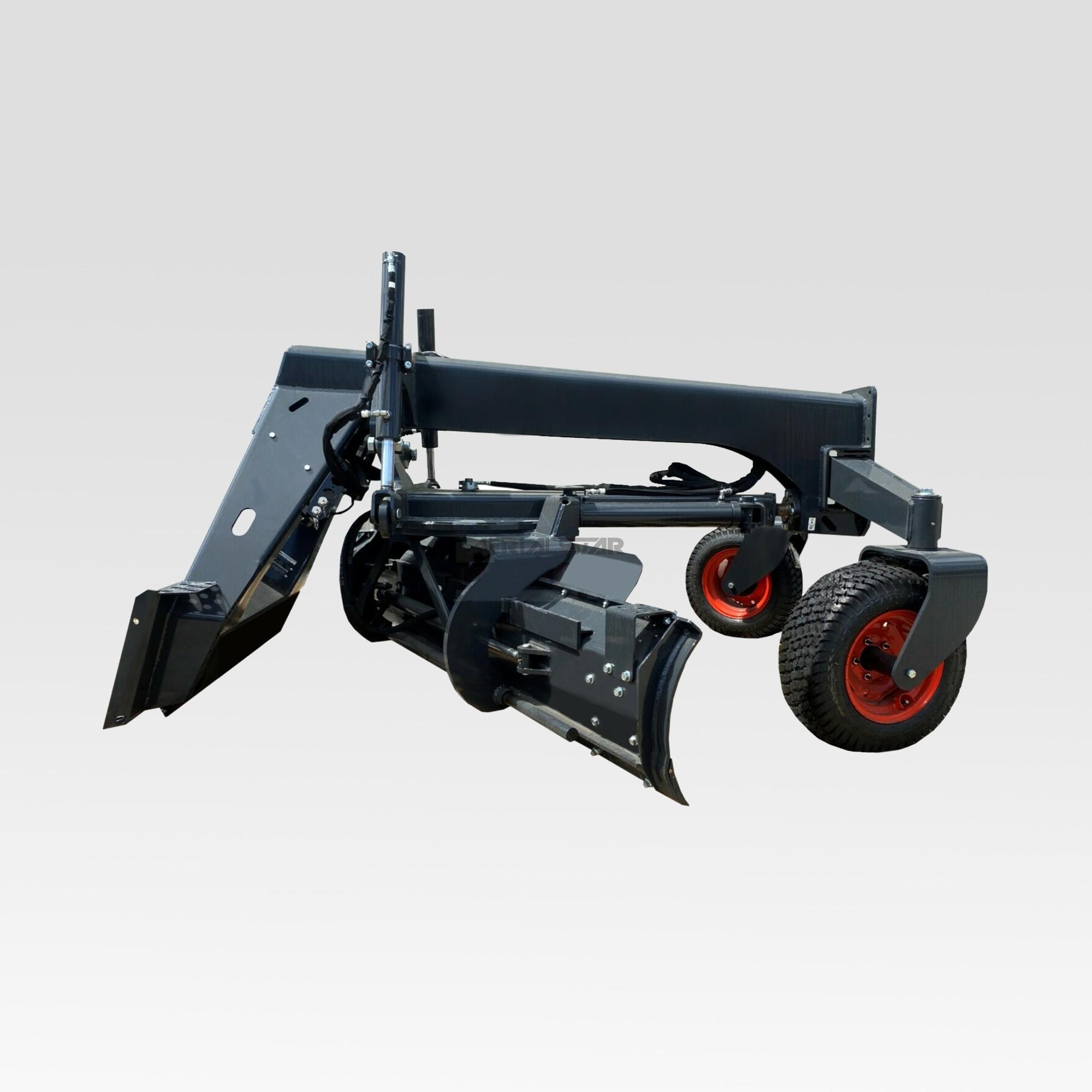

Grader

Product Item:031384
This machine can be installed on skid steer loaders and mini loaders, with the scraper
 installed between the front and rear axles of the machinery, capable of lifting, tilting,
rotating, and extending outward. Flexible and accurate movements, easy operation,
and high precision in leveling the ground. It is mainly used in landscaping, asphalt,
curbstones, drainage ditches, concrete walkways, and path construction.
  • Product Detail

Technical Parameters

Model

031384

Total   width (mm)

2130

Overall height (mm)

1360

Total   length (mm)

2205

Total weight (kg)

580

Blade width (mm)

2130

Maximum Rising Height (mm)

160

Maximum depth of cut (mm)

110

Left and right side shift width (mm)

±300

Hydraulic flow rate (LPM)

50-86

Hydraulic pressure (Mpa)

18-21

Applicable models

Skid Steer Loader / Mini Loader

Optional system

Laser control system/hydraulic side shift function
