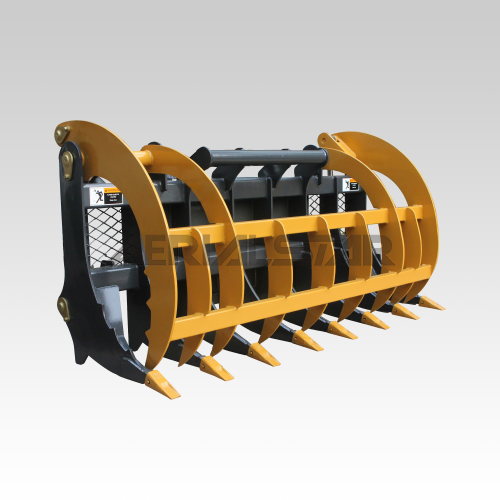

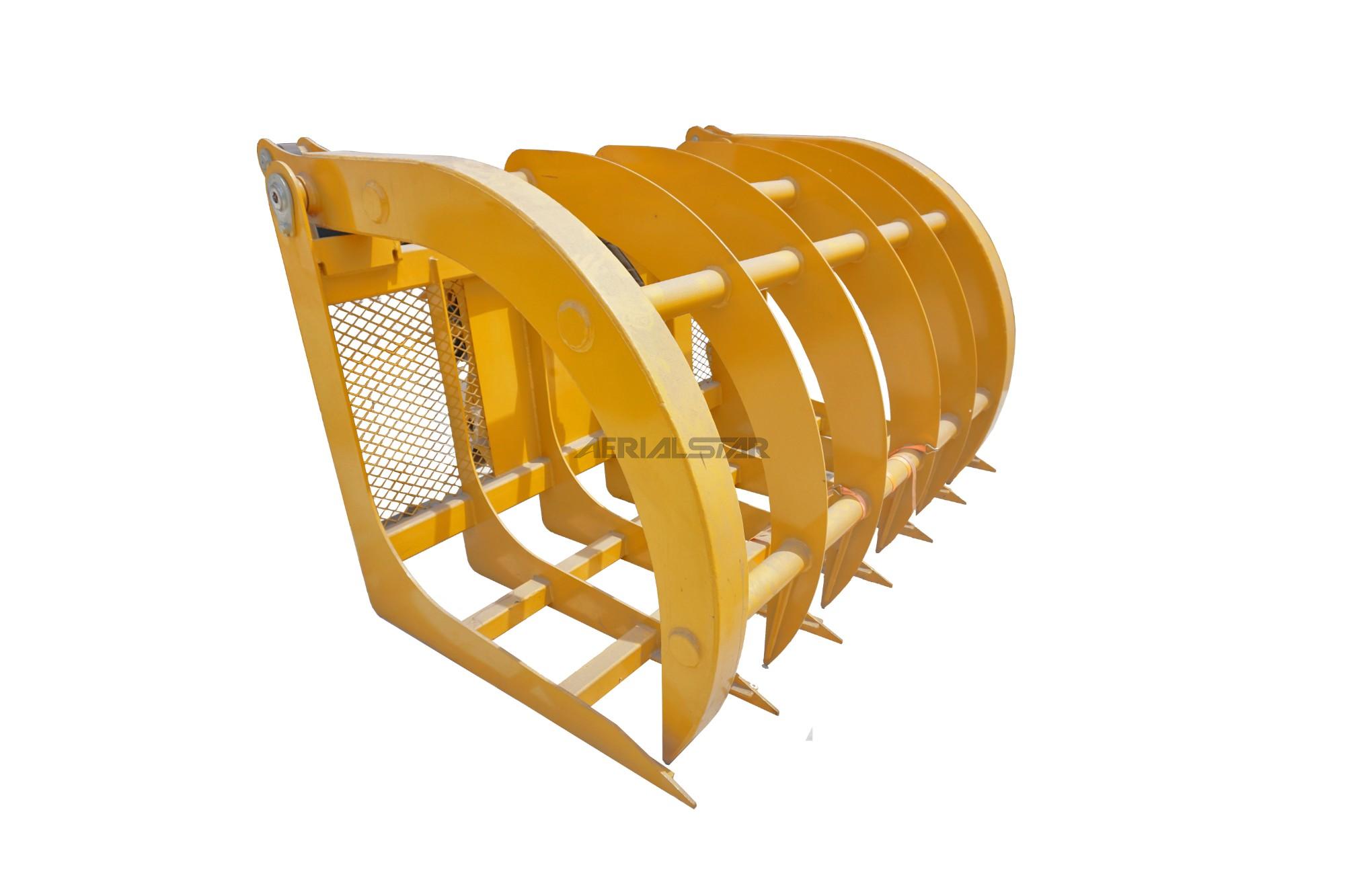

Grapple rake

Product Item：BM08

It is used together with Wheel Loader, can grab materials such as haystacks, straw,
and branches, and is widely applicable to grasslands, pastures, farms, and other places.

Product Detail

Technical parameters
Model	BM0830	BM0850
Sabinet minister (mm)	1650	1660
Total width (mm)	2330	2855
Overall height (mm)	1540	1540
Maximum opening (mm)	2190	2240
Minimum holding circle (mm)	φ1020	φ1040
Weight (including pendant) (Kg)	1335	1720
Allowable maximum pressure (MPa)	21	21
Maximum grab weight (T)	2	3
Applicable model	3t / 5t loader	3t / 5t loader
