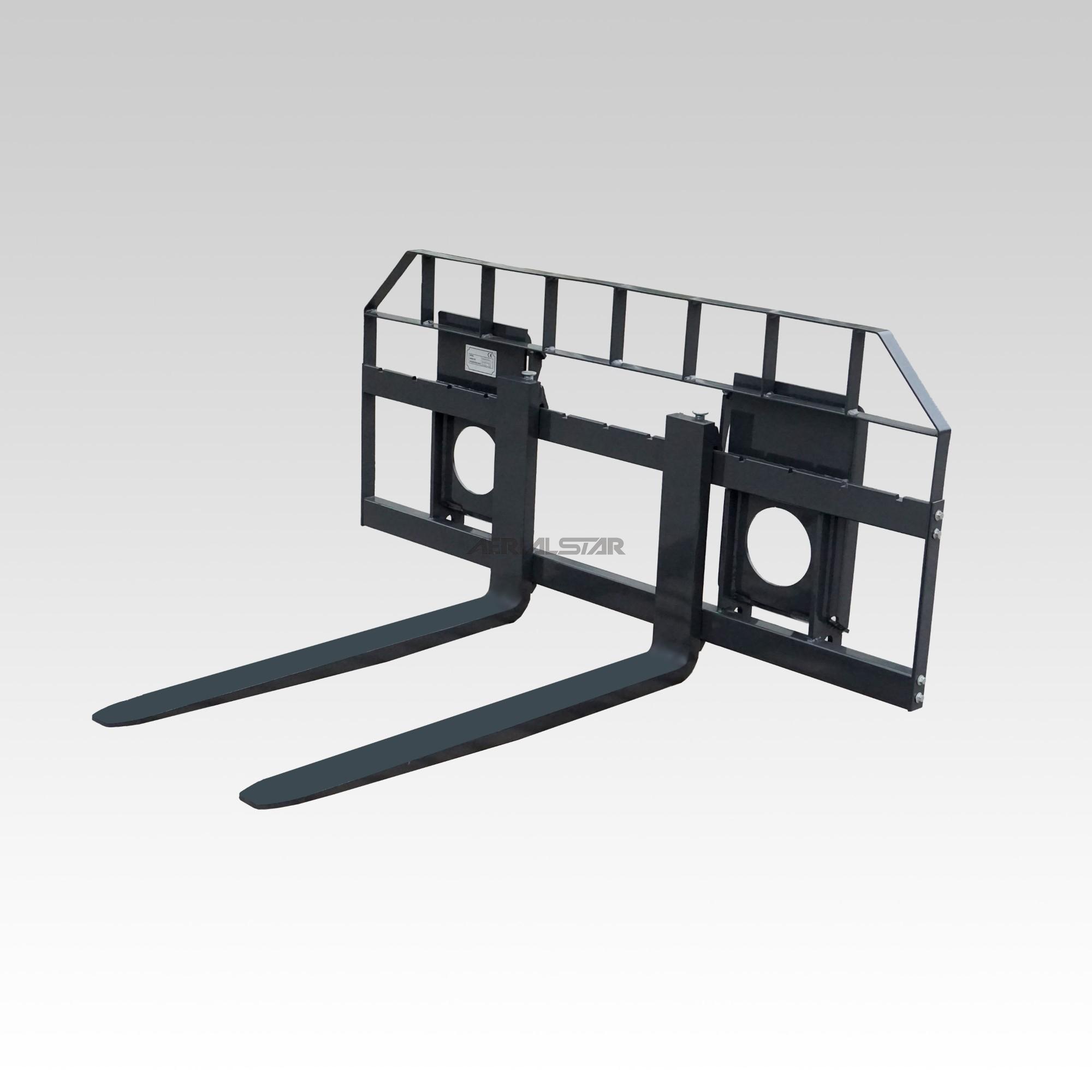

Pallet Fork

Product Item:AS-0102
The 0102 series fork, which is a fork shaped retrieval device used on small loaders to
achieve forklift function. Combining with the matching host model can achieve working
 conditions that forklifts cannot complete, such as matching track slip loaders to handle
 goods on soft roads or muddy roads
  • Product Detail

Technical   Parameters

Model

010215

0102S15

Overall Width (mm)

1600

1580

Overall   Height(mm)

770

885

Fork Tooth Length (mm)

1070

1070

Range of   fork tooth pitch adjustment(mm)

220-1540

340-1540

Weight (Kg)

172

200

Rated Load

1.5t

1.5t

Optional Fork Tooth Length(mm)

1220/1370/1520/1670

Configuration

Optional elevated guardrail

/
