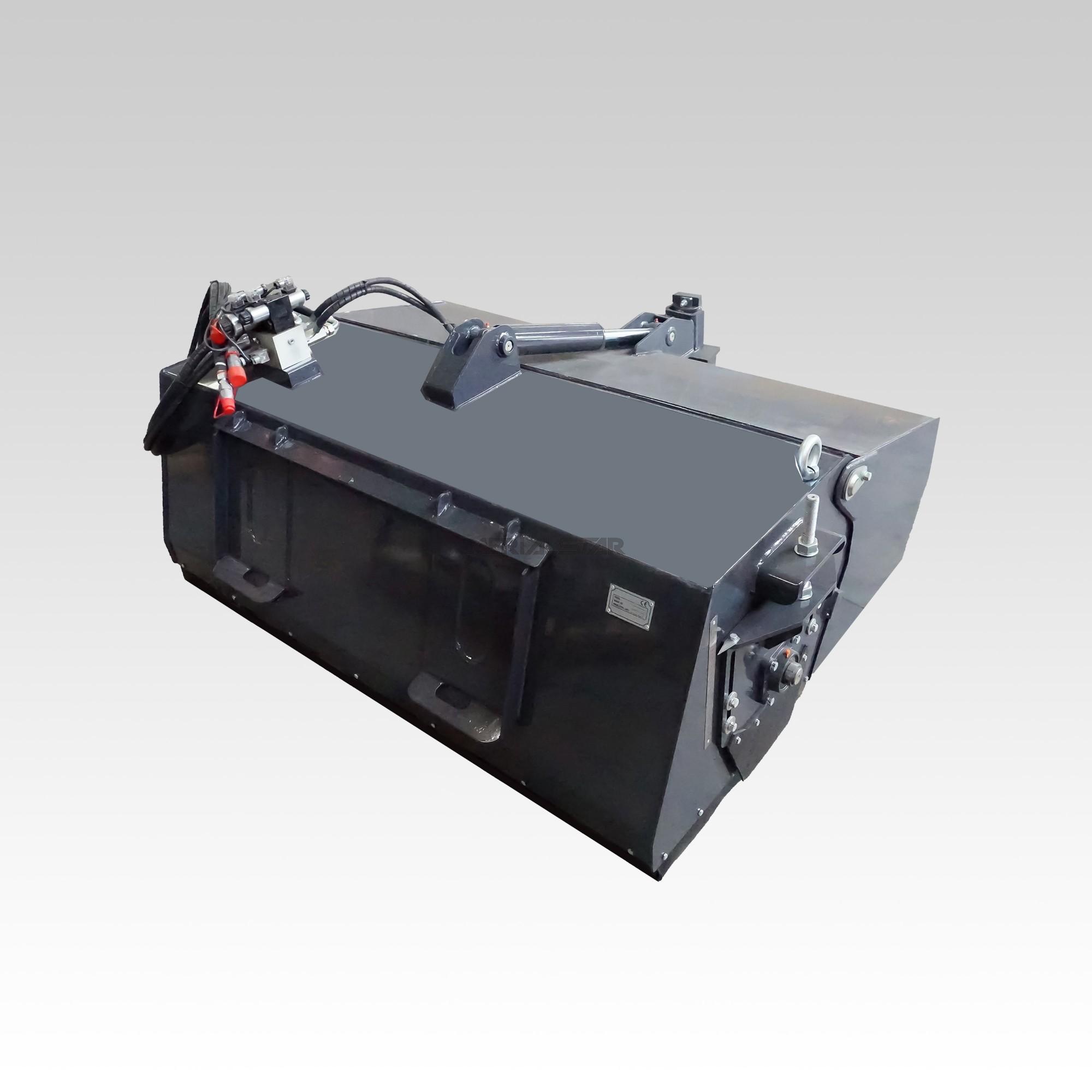

Technical parameters of the 0202F Front-mounted broom | |
Model | 0202F72 |
Length(mm) | 1491
|
Width(mm) | 2190 |
Height(mm) | 825 |
Weight (with pendant) (kg) | 503 |
Gathering material bucket capacity (m3) | 0.32 |
Effective cleaning width (mm) | 1820 |
Roller brush diameter (mm) | 550 |
Allow maximum pressure (Mpa) | 21 |
Work flow(L/min) | 60-80 |
Working speed (km/h) | 4~5 |
1. The forward way of cleaning operation, operation safety, high operation efficiency, greatly improve the safety
of the operation, reduce the labor intensity of the operation, eliminate the backward operation mode of the
physical harm to the operator.
2. The unloading mode is controlled by hydraulic pressure. By turning the unloading floor and quickly unload,
avoid the wrong unloading operation methods such as habitual knock bucket and shock bucket, and improve the
operation safety and the service life of the equipment.
3. The height of the brush can be adjusted continuously, convenient and quick. The adjustment place is designed
with a graduated steel plate ruler, which scientifically reduces the amount of the brush pressure to ensure the
cleanliness of the cleaning operation and greatly improve the service life of the brush.
4. The brush uses a new type of mixed silk brush, including: plastic wire is high elastic, wear-resistant
polypropylene engineering material, steel wire using wear-resistant material 32SiMiTi, that is to reduce the
damage to the road surface and reduce the operation cost.
5. The front end of the sweeper is equipped with a support wheel, which facilitates the rapid placement of the
cleaning sweeper and avoids the wear of the hopper bottom plate.
